How to Develop A Web Service And Client In Java (Using Eclipse- Apache Axis 2 Bottom Up Sevice)

Introduction :

The Purpose of this tutorial is to Demonstrate the New introduced Web Axis2 Web service Tool using WTP 2.0 Driver .This tutorial will show how to develop a simple Web Service and Web Service Client Using JAVA . We Create A simple Web Service Containing Java Class Which Concatenate two Input String Value .

Pre-requisites :

  • JDK (1.6 or above )
  • Eclipse WTP 2.0
  • Apache Tomcat Server (5.5 or above )
  • Axis 2

Downloads :

  • Download Jdk From Here (download) .
  • Download Eclipse From Here (download) .
  • Download Axis 2 From Here (download) .
  • Download Apache Tomcat From Here (download) .

Configuration :

  • Install JDK and Set Environmental Variable Path .
  • Download Eclipse .
  • Download Axis2 and Unzip it In a folder You like.
  • Download Apache Tomcat Server And Unzip It .

Configure Environmental Variable :

In Windows Xp go to MyComputer –> Properties –>Advanced –> Environmentalvariable  Add System Variable . Give the PAth of the Bin Folder Where install Jdk .

Check this By opening Command Prompt and type Javac . If you get Error then You Miss Some Installation Step or You did’t Set Up environment Variable Correctly .

After Successfull setting of Environmental variable Run Eclipse And Set first Apache Tomcat Server .

Configure Apache Tomcat Server :

Open Eclipse And goto Windows –> Preferences –> Servers

Pic_01

Then Click Add

Pic_02

Select The Server (Apache Tomcat V5.5 or Above ) Then Click next Pic_03

Now Give The Path of the directory where You Unzip the Apache Tomcat server or Click the download and Install Tomcat . Set JRE Path .

After Configuration Of Server Configure Axis2

Configure Axis2 :

Download Axis2 And Unzip It in a Folder You like .

Open Eclipse goto Window –> Preferences –.> webServices –> Axis2Preferences

pic_04

Now give the Path of the Bin Directory of Axis2.

Web Service :

Open Eclipse And Form Dynamic Web Project  File –> New –> other –> Web –> Dynamic Web Project.

Pic_05

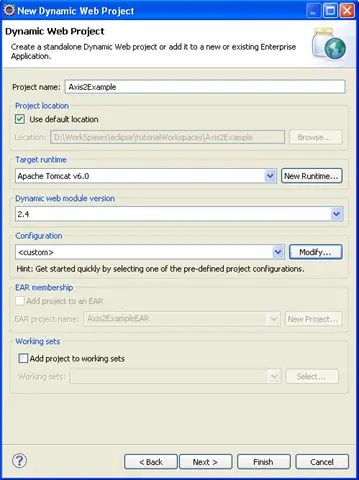

Give the project Name as Axis2Example . Set Apache tomcat as Runtime Server

Pic_06

Then Give Axis2 Web Service Facet .

Pic_07

Then form a Package Name it as com.classes Add java Class in This Package Name as Concatenate.java

The Project Structure Look Like This .


The Class is as under


Right Click on the Class And Form it As a Web Service .

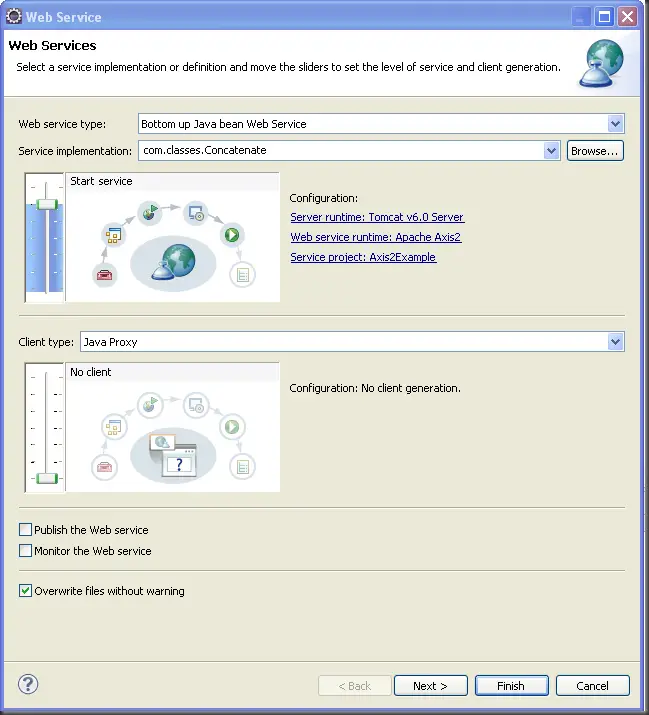

image Then Web Service Configuration Starts . select Bottom Up java Bean WebServices .

Select Tomcat Apache v6 as server .

Select Apache Axis2 as webservice Runtime Click ok.


click ok.


Click Next

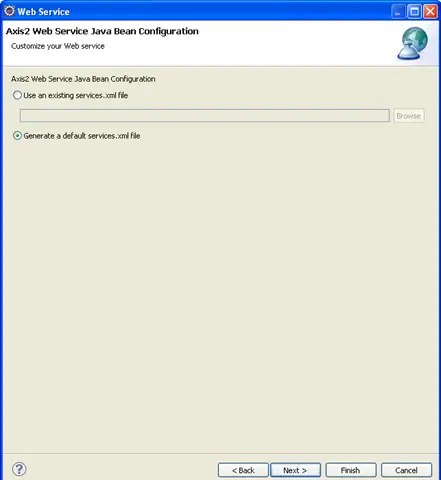

image  Leave these settings as default  Press Next .

Then Start Server if not Started


Then after Server Starts Click next.

After that Right Click on the project and run it as Run on server .

Then Select Apache Tomcat v6 as Server .


Then Click Next .


Your Project Axis2Example must be on the right side  then Click finish.

The server Will deploy Your Application as a Web service and this is the main page of  your service .

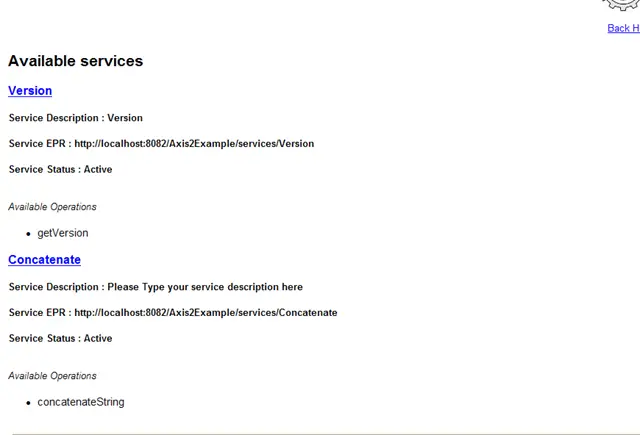

Then click on the Services To see The available Services .

In This tutorial We only Form one Service Class Name Concatenate and its service as ConcatenateString.


Click on the webService Concatenate to See The WSDL file. Copy that path .


We successfully Create and Deploy  the Web Service Now we are going to form the Web Service Client To call The Web Service .

Web Service Client :

Go to File –> New –> Other –> select new web server Client.


Click Next .


paste the URL of wsdl file here in the Service Definition .

Select Tomcat V6 as Runtime Server and Apache axis2 as Web service runtime.

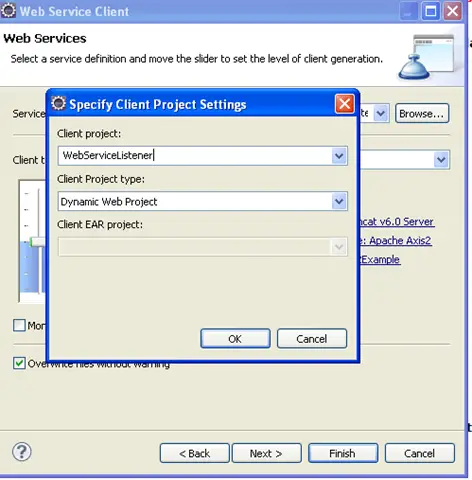

Select New Dynamic Name as WebServiceListener  Project as Client Project .


Click ok


The Structure of Web Server Listener is as under :


Now Form Java Class having Main function in order to call that service .


Name It ClientCall or any other Name You Want And select public Static void Main (String[] args).

Click Finish.

Then Right Click on the File and Run it as java Application .
